Mobile Device Create Record
Sometimes, you may need to carry out tasks offline and then submit the results to TeamDesk when an internet connection is available. To address this scenario, we’ve developed the TeamDesk mobile client application.
To make this work, you should add mobile device workflow actions. There are two possible types of mobile actions: the Mobile Device Create Record
action and the Mobile Device Update Record
action.
For instance, let’s say you need to create a photo report about placed advertisements or register your expenses, and you want this data to be stored in your database. To accomplish this in a simple manner, you can set up the Mobile Device Create Record
action in the appropriate table where the data should be stored. Afterward, you need to configure the TeamDesk mobile client application on your mobile phone.
Please note that the Mobile Device Create Record
action does NOT require a trigger. To create this action, follow these steps:
-
Click the
Setup
link in the top right corner of the window. -
Select a table and click on the corresponding table name in the list on the left.
-
In the main frame, choose
Rules
>Workflow Actions
from the menu. -

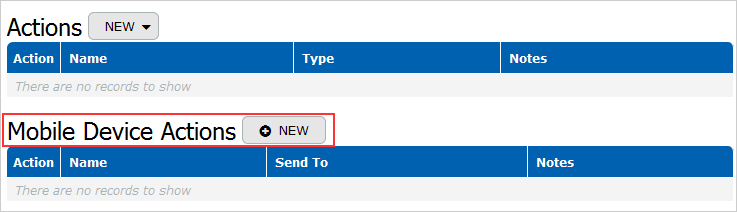

Click
New
in theMobile Device Actions
section.
-

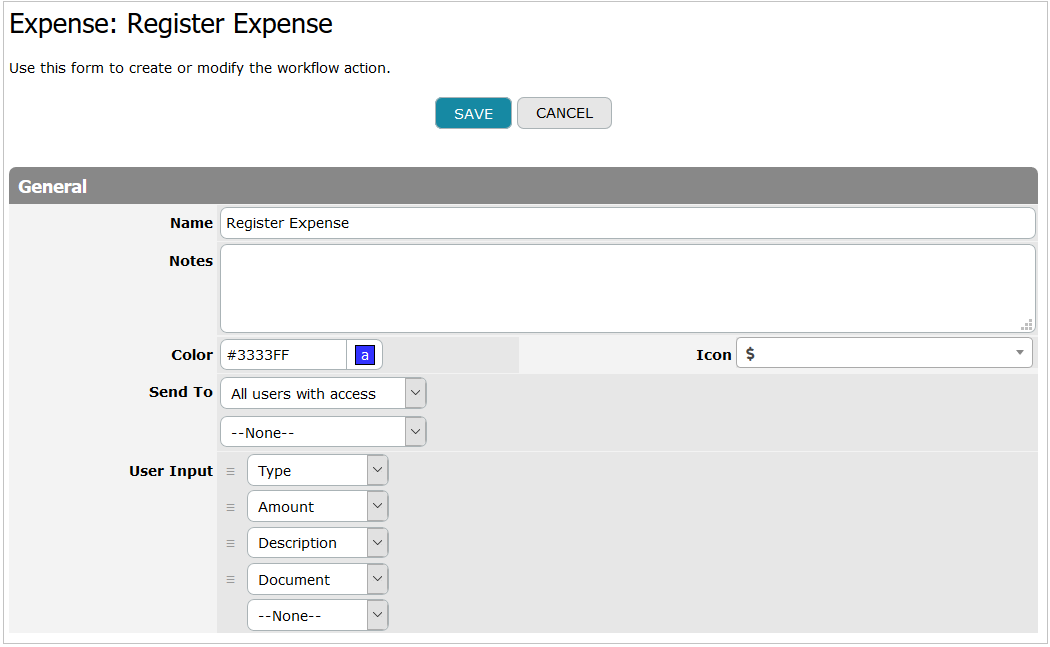

Complete the action form. Let’s consider the example of registering expenses:
- Name
- Enter a name for the action.
- Notes
- Add any comments you need for this action.
- Color
- This option is intended to override the default "table color" logic, allowing you to set a different color for a mobile action.
- Icon
- This option allows you to choose an icon for the mobile action from a selection of over 900 icons covering various subjects, such as actions, brands, file types, symbols, animals, and more. The
Search box
above will help you narrow down the list of choices. - Sent To
- Select options that define who can access the action in the TeamDesk mobile client application. You can specify one or more of the following options:
- All users with access: The action will be accessible to all users who can view or add records to the table where the action is created.
- Me: The action will be accessible only to you.
- The User: The action will be accessible only to a specified user.
- All members of the role: You can choose a role, and the action will be accessible to users assigned to this role.
- User Input
- In the
User Input
section, you can choose fields or columns that should be displayed to a user when creating a new record via the TeamDesk mobile client application.

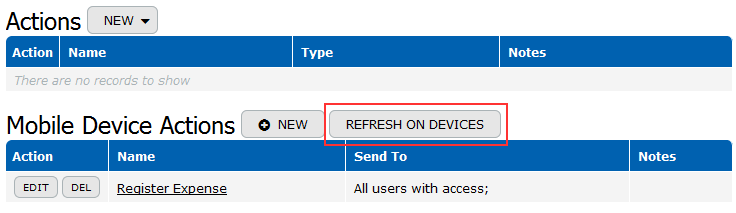

If you need to edit the action, you can use the Edit
button. To synchronize the changes with mobile devices, you must click the Refresh On Devices
button.

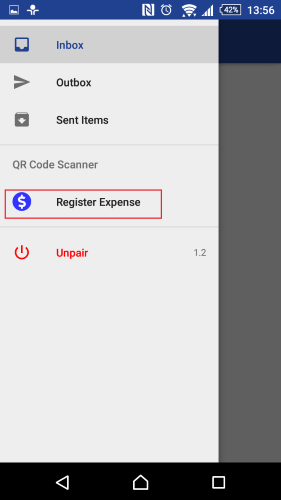

In the TeamDesk mobile client application, you can click on the menu icon, and the "Register Expense" action will be listed there:
Please note that the
Mobile Device Create Record
action becomes instantly available via the mobile client application menu for selected users, users in specific roles, or all users with access to the table’s records.Moreover, when the application sends the record back, the database will check validation rules and trigger record change triggers if any are defined for the table.
Example: Register Expenses

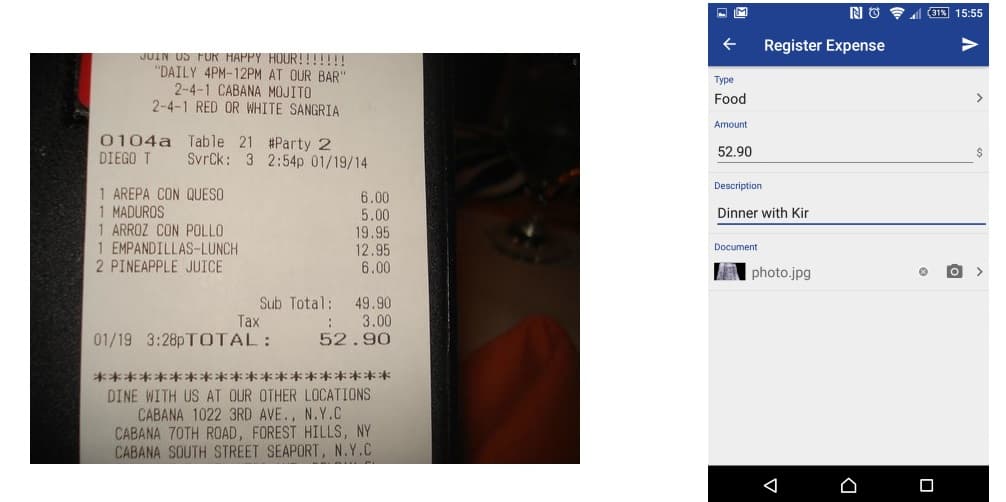

Here’s an example of logging a new expense using a mobile device:
To send this expense to the database, simply click on the Send
icon.

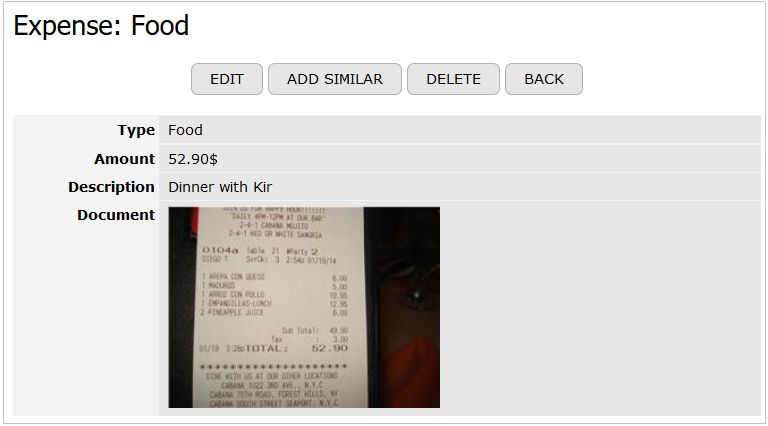

As a result, the expense record is registered in the database:
Feel free to request a trial for the Example: Mobile Device Create/Update Record Database to test how it works.
