Navigate

TeamDesk has straightforward navigation logic which works well in most cases and usage scenarios. But there can be case when you may want to change it for some reason. In that case Navigate action come in handy.

You can link a navigate action to any record change trigger or custom button and redirect a user to another location after the system performs the action.

Please note, that the Navigate action does NOT work with Time-Dependent and Periodic triggers. Also, it does NOT work, if you add it as an action triggered by a Multi-Record button.

To create the Navigate action:

Select the Navigate option in the action type list and fill out the form as described below.

In the General section of the form enter the action name and write notes if needed.

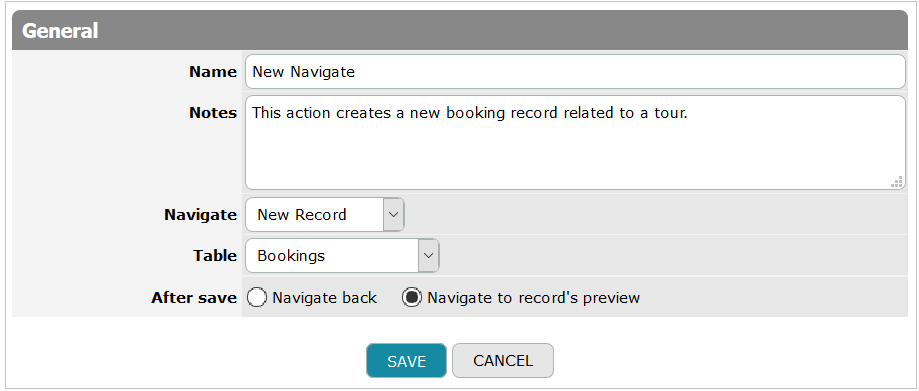

New Navigate Action.png

In the Navigate dropdown the following redirection options are available:

Option Description
New Record The system redirects a user to an opened new record form. You can use the section with navigate action assignments to prefill form fields with some values, if it’s needed.
Edit Record If a Create Record action (or a Update Record action) proceeds a Navigate action, the system will redirect a user to the edit form of the created (or updated) record.
Preview Record If a Create Record action (or a Update Record action) proceeds a Navigate action, the system will redirect a user to the view form of the created (or updated) record.
Custom Button The system will redirect a user to the selected custom button.
Document The system will redirect a user to the selected document generation page.
View The system will redirect a user to the selected view.
Dashboard The system will redirect a user to the selected dashboard.
Custom URL The system will redirect a user to the specified custom URL. As with Call URL actions, you can use <% %> to construct it dynamically.

In the Table dropdown select a table where a new record should be created.

Moreover, if the New Record option is chosen, in the Navigate dropdown the following After save options are available: Navigate Back or Navigate to record's preview. The first one allows to go back to the page where the action was activated, the second one navigates to an opened new record form, a user can make changes on this record form and can save this new record or can cancel it.

Edit Record, Preview Record, Custom Button and Document options require some "current" record to work properly. Depending on a table selected for a navigate action, TeamDesk will use the last created record or current record as an action context. If there is no table match, then navigate action will be ignored.

Using navigate action you’ll be able to implement the following scenarios:

Create a custom button to open a new child record (related detail record) form directly from a parent table (master table) view, without the need to open record preview form and using new button from detail records;

Open preview form for record created with help of create record workflow action linked to the custom button.

Create a custom button to log document generation timestamp.

and many others.

Example:

Let’s consider the example where a Navigate action opens a new Booking record form related to a Tour. Say, there is One-to-Many relation, each Tour master record can be related to many Bookings detail records.

You created the "Add Related Booking" custom button with the Navigate action. The action should open a new Booking record form related to a certain Tour. So, a corresponding Tour Id value should be inserted into the "Tour" reference column field shown in a new Booking record form. To make this automatic insertion, you need an assignment, therefore when the action is created, click on the New button in the Assignments section:

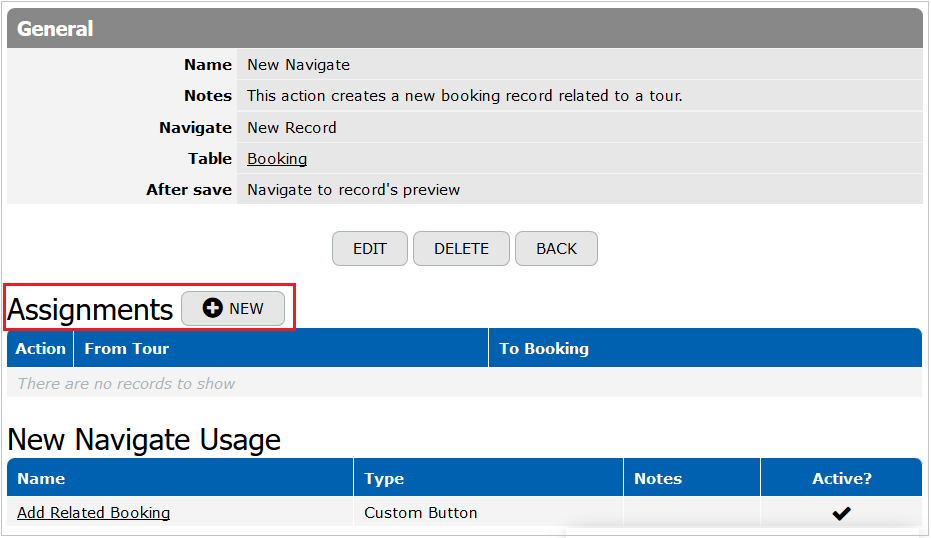

Navigate Assignment.png

Fill in the "From" and "To" options to create the assignment, that will insert a value specified in the "From" field into the column chosen in the "To". As the result, the opened new record form will comprise this column value.

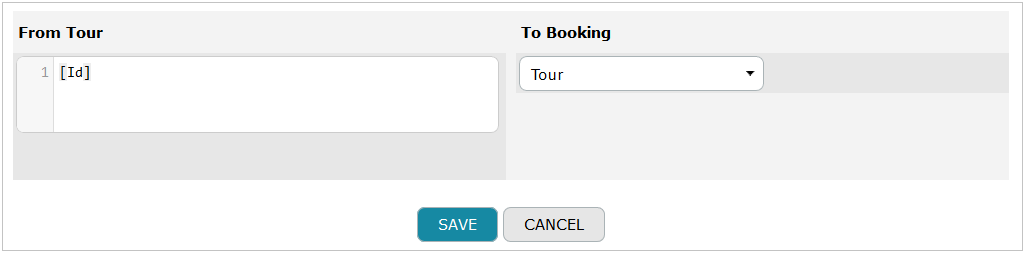

Fill in Assignment.png

From … In the From Tour field enter the formula (or value) used to create a value that will be later inserted into a predefined record field.
To … From the To Booking list select the field (column) to which the From Tour value should be inserted.

When finished, click Save.

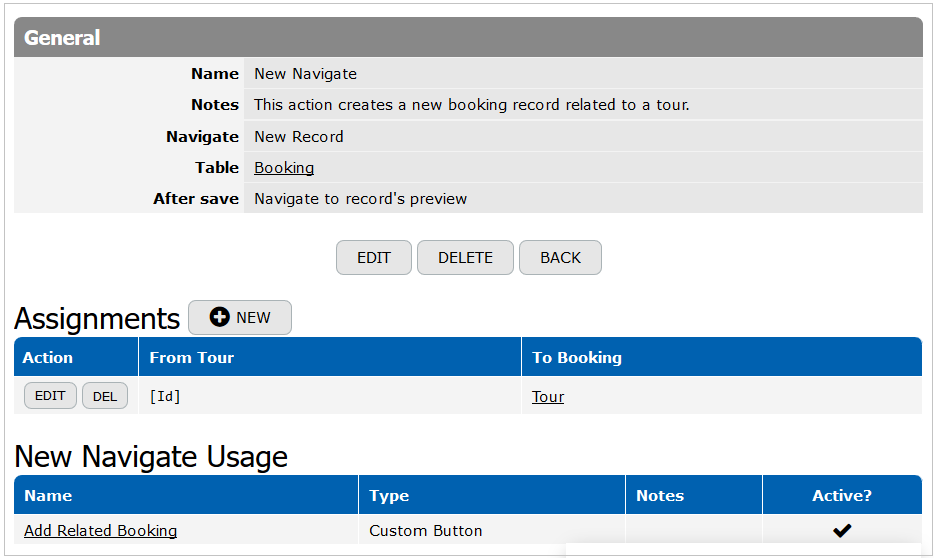

Navigate with Assignment.png

If it’s needed, you can add many assignments to one action.
