Chart

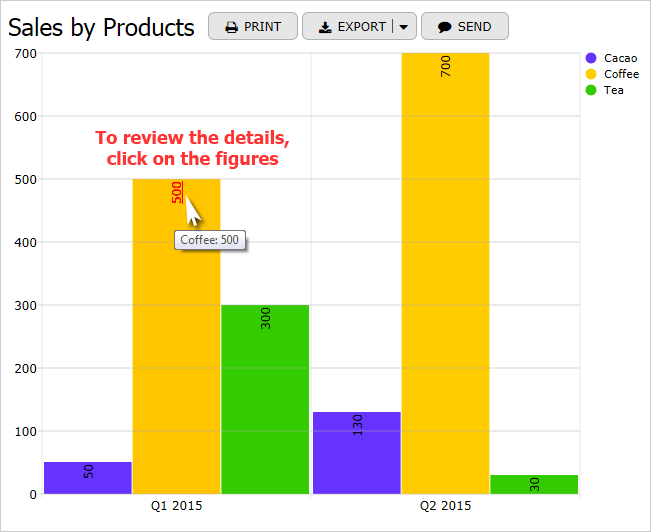

Chart with details

Using the Chart View, you may easily visualize sales volume comparison. Furthermore, if you need to drill down and review the details summarized in the Chart, just click on the displayed figures, and the details view will be opened.

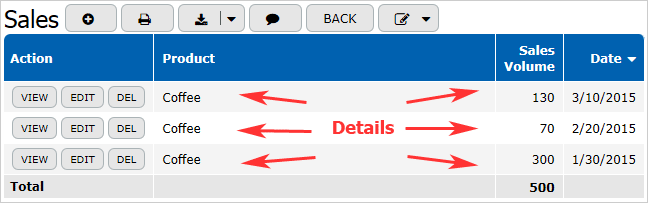

Details

To create a chart view, select the Chart option from the list of view types and click Next. The system will display the Chart View form comprising the sections described below.

General Properties

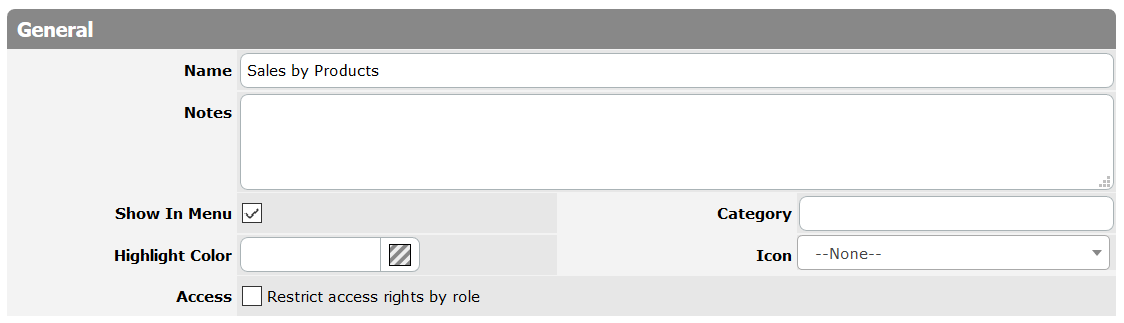

Chart View General

Name
Enter a name for the new chart view.
Notes
This field can hold any developer’s comments that need to be kept for this view. The comments will be visible in the Setup mode only.
Show In Menu
Leave this option checked if the view should be displayed in the menu.
Category
Enter a category name if you want to group the view under a category.
Highlight Color
Select a color to highlight this view in the list displayed in the menu.
Icon
This option allows you to select an icon for a view. You have a choice of 900+ icons covering various subjects – actions, brands, file types, symbols, animals, and more. The Search box above will help you narrow down the list of choices.
Icon

In the User mode the icon will appear to the left of the view name listed in the left menu of the table.

Access
If you want to restrict access to the view for your users based on their roles, select the Restrict access right by role checkbox and choose which roles will have access to this particular view.

Matching Properties

Chart Matching

Filter
The Matching section is intended to set the filter criteria for the records that will be displayed in the view.
  • All records: select if you want to include all records into the view;
  • Only records that meet certain criteria: select if you want to filter records according to certain criteria. With the help of drop-down lists below create the rules according to which records will be filtered;
  • Custom formula: select if you want to enter a custom formula and add the formula into the expanded field.

Chart Properties

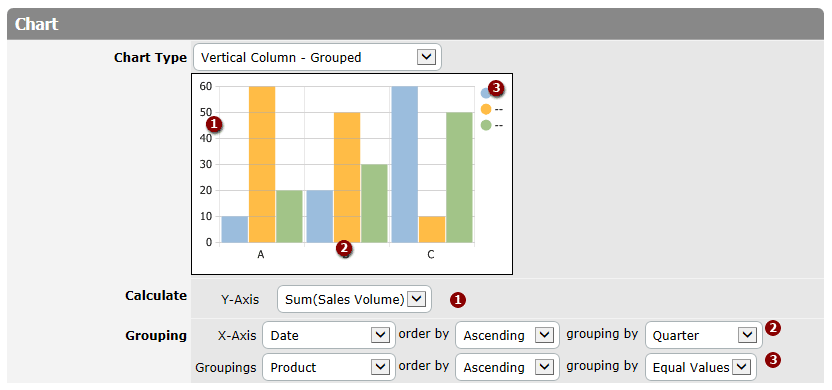

Chart Adjustment

The Chart section allows you to select the necessary chart type and specify its parameters.

Chart Type
From the Chart Type list, select the necessary chart type, and the example of the selected type will be displayed below.
Calculate
(1) Specify a formula that will be used to calculate values of Y (X) axis.
Grouping
(2) Specify the type of data that will be used to build the chart and displayed on the opposite X (Y) axis, also specify the order and the way in which the data will be grouped.
(3) Moreover, some chart types allow additional grouping. It divides the chart results into subgroups. Such subgroups are displayed as the legend in the top right corner of the chart. Grouping options are expounded in the Grouping item.
Wedges to display
Use this field only if the Pie or Doughnut chart type is selected. Here you can specify the number of pies to display (all other entries will be grouped under the “Other” section).

Advanced Options

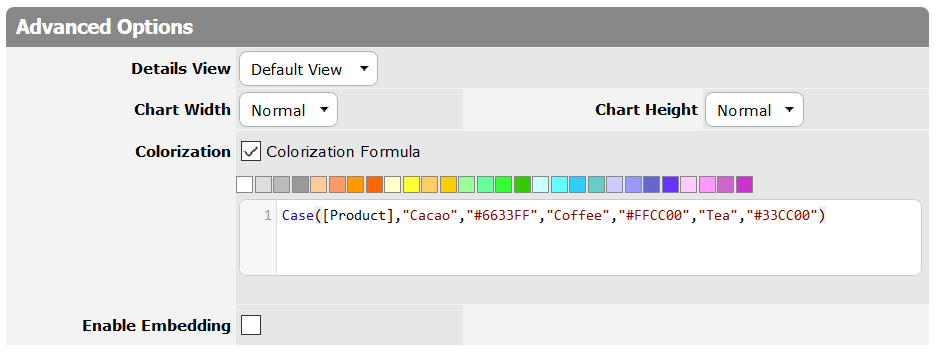

Chart Advanced

The Advanced options section is intended to specify additional options:

Details View
When the chart is built, the records are grouped, and results of such grouping are shown on the chart. The Details View option provides a possibility to overview the records included in every group. As a result, on the chart, each grouping value is displayed as a link. When a user clicks on such a link, the details of the group are displayed. You can define what view will be used to show details of the groups. In the Details View dropdown, you can select any view built in the same table.
Chart Width
Specify the width by selecting one of the options:
  • Narrow;
  • Normal;
  • Wide.
Chart Height
Specify the height by selecting one of the options:
  • Short;
  • Normal;
  • Tall.
Colorization
Check the Colorization checkbox to color the chart according to your need. The details are expounded in the View Colorization item.
Enable Embedding
This option allows you to copy/paste a simple HTML snippet to embed a view on your website page. More details are described here Embedding Option for Views.

Help

Help
When this text property is filled in, a view page displays a small dropdown titled "Help" just under the tab bar. On the user’s click, it extends toward the bottom displaying the text you’ve typed.

Chart Types

You can create the following Chart Types:

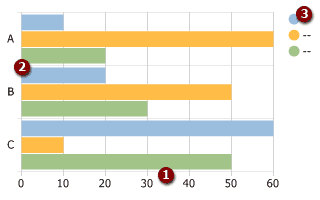

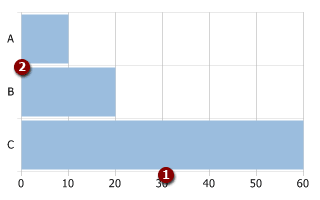

Horizontal Bar Horizontal Bar - Grouped
Horizontal Bar Horizontal Bar - Grouped

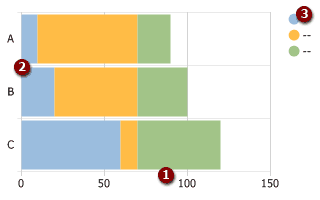

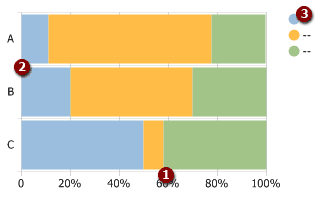

Horizontal Bar - Stacked Horizontal Bar – Stacked to 100%
Horizontal Bar - Stacked Horizontal Bar – Stacked to 100%

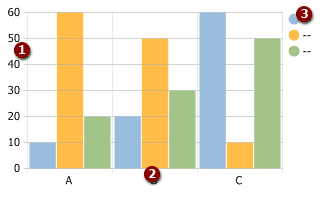

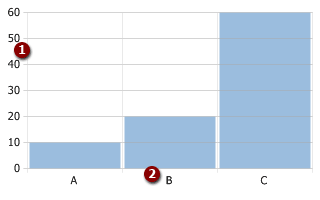

Vertical Column Vertical Column – Grouped
Vertical Column Vertical Column – Grouped

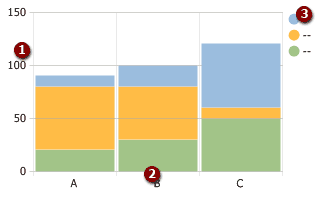

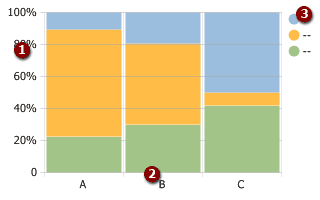

Vertical Column – Stacked Vertical Column – Stacked to 100%
Vertical Column – Stacked Vertical Column – Stacked to 100%

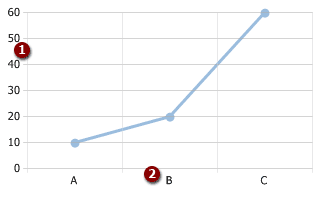

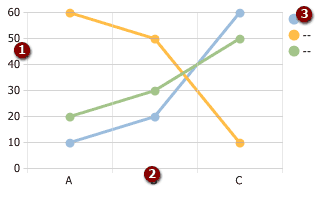

Line Line – Grouped
Line Line – Grouped

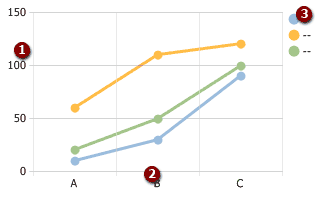

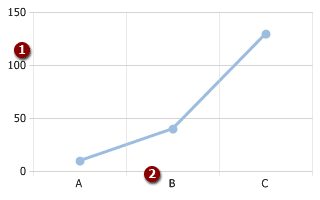

Line - Cumulative Line – Grouped Cumulative
Line - Cumulative Line – Grouped Cumulative

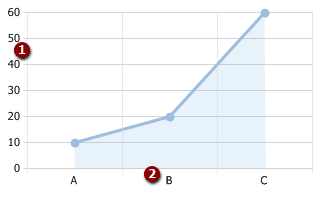

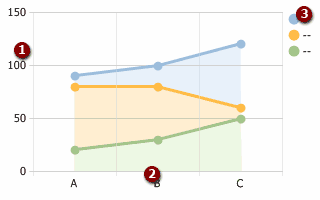

Area Area – Stacked
Area Area – Stacked

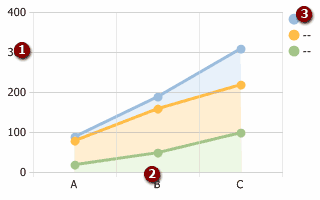

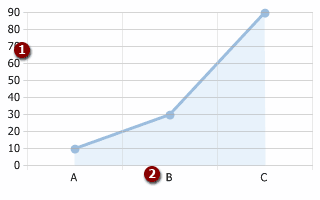

Area - Cumulative Area – Stacked Cumulative
Area - Cumulative Area – Stacked Cumulative

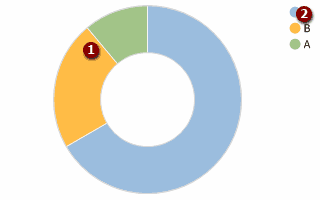

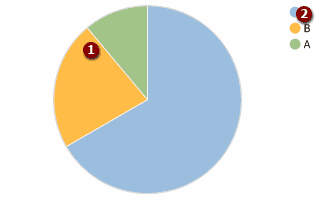

Pie Doughnut
Pie Doughnut
