Formula - XHTML
Formula - XHTML provides a way to decorate column values with tags and styles. It is a mixture of limited (X)HTML markup and TeamDesk formula language.
Using Formula - XHTML, you can write HTML markup as is, decorating TeamDesk formula pieces (code points) with <%…%> marks; those who have dealt with ASP should be familiar with the syntax. Each formula piece is evaluated; the result of evaluation is properly encoded and inserted into the markup.
Code points can appear inside attribute values and/or in tag contents, and dynamic tag generation is not allowed. We designed it this way to ensure the formula result is well-formed HTML and won’t affect the rest of the page’s content.
Here are typical usage examples for the formula:

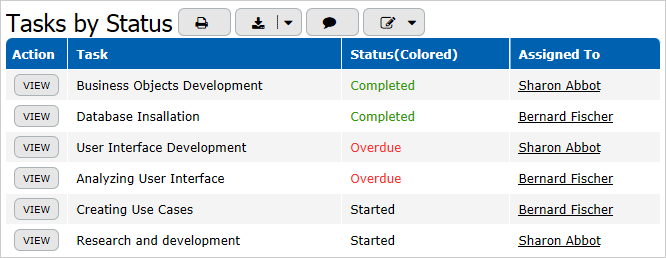

Coloring the Status
Color a Status value green if it is "Completed", red if it is "Overdue", otherwise black.
To do this, add a new Formula - XHTML column and name it "Status(Colored)". This column can be added to a Table View instead of the existing "Status" text column, which can be used only for record editing. When the Formula - XHTML column is created, you can enter the following formula:
<font color="<%Case([Status],"Completed","#339900","Overdue","#ff3333","")%>"><%=[Status]%></font>

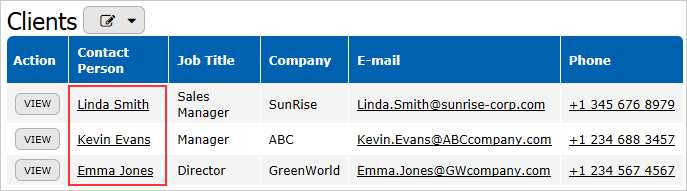

Contact Name as Email Link
Decorate contact names as e-mail links.
Create a "Contact Person" Formula-XHTML column, where the existing "Name" column is associated with a corresponding e-mail listed in the E-mail column.
Enter the following formula:
<a href="<% Nz("mailto:" & [E-mail]) %>"><% [Name] %></a>
Behind the scenes, Formula - XHTML creates a text formula: a concatenation of markup code and formula results enclosed in an HTML encoding function, such as the code below produced from the example:
"<a href=\"" & Encode(Nz("mailto:" & [E-mail])) & "\">" & Encode([Name]) & "</a>"

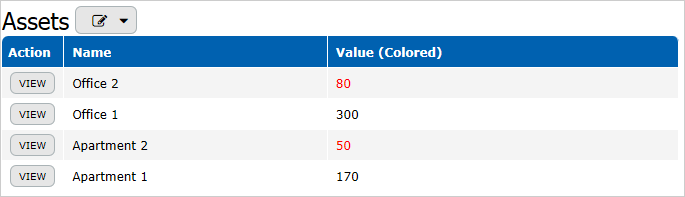

Coloring Numeric Values
Color a value red if it is less than 100.
Create the "Value (Colored)" Formula-XHTML column, where the values should be colored.
Enter the following formula:
<span style="<% If([Value] < 100, "color:red", "") %>">
<%= [Value] %>
</span>

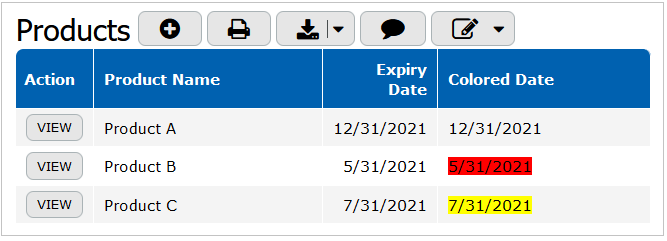

Highlighting Date Background
Highlight the background of an Expiry Date value in red if it is less than today+60 days and in yellow if a value is less than today+180 days.
Create the "Colored Date" Formula-XHTML column, where the "Expiry Date" column value background should be highlighted.
Enter the following formula:
<span style="background-color:<%If([Expiry Date]<Today()+60d,"red",[Expiry Date]<Today()+180d,"yellow","")%>"><%=[Expiry Date]%></span>

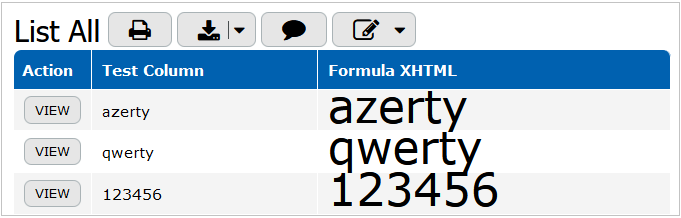

Changing the Font Size
Increase/decrease the font size.
The Formula XHTML keeps the following formula:
<span style="font-size:300%"><%[Test Column]%></span>
You can specify the percentage value you need and write a corresponding column name instead of "Test Column".
Be aware of the way concatenation handles NULL values - if one of the parts is NULL, the whole result is also NULL. The first example produces no markup at all when the value of [Name]
is blank. While it is useful in some scenarios, enclosing each and every field you want to display in a sort of NULL checks is a cumbersome task. To handle this case, we created a shorthand for code points containing a sole reference to a column, <%= [Column] %>
. It creates an Nz()
wrapper so that NULL values produce empty strings that can be safely concatenated. Numbers, dates, times, and timestamps are converted to text via locale-aware Format() function, and other types are converted via ToText()
. In the second example, <%= [Value] %>
produces Encode(Nz(Format([Value])))
.
The usage of HTML and Formula - XHTML is somewhat limited due to technical reasons.
- Markup will be displayed as text in:
- Dropdown lists, as dropdowns do not support markup;
- Calendar views and Lookup columns with "Display As Link" options checked, as a very limited set of tags can be displayed inside of a link;
- Documents as the Word file format has no connection to HTML.
-
Some tags are disabled to avoid interference with the rest of the page:
<html>, <head>, <script>, <noscript>, <title>, <meta>, <link>, <base>, <style>, <body>, <form>, <input>, <isindex>, <textarea>, <select>, <optgroup>, <option>, <fieldset>, <legend>.
<button>
tag is allowed only when its type attribute is set to "button." -
All allowed tags require a closing tag, even if it is not required by HTML. For example, in HTML you can write:
<p>First paragraph <p>Second paragraph
-
In formula code, you should close the
</p>
tag before opening a new<p>
tag:<p>First paragraph</p> <p>Second paragraph</p>
-
Tags that cannot have inner content, such as
<img>
,<br>
,<hr>
, and<param>
, should be self-closed, e.g., written as<br/>
or<img src="image.gif"/>
.
